Setup & configure MySQL docker container with Persistent Storage

Last Updated on 7 hours by Sachin G

In this post, we are deploying a Docker container of MySQL that saves the data into a host folder. Here we will be able to manage a persistent database with a shared volume.

Step 1: Search official MySQL Docker Container Image

Docker user searches through subcommands and finds available MySQL official images from remote or local registries. The below command filters only the official image of the MySQL database. We got two results, one MySQL and another one MariaDB.

   # docker search --filter is-official=true MySQL

Step 2: Download the official MySQL Docker Container Image

After searching for the image, you can use docker pull to download it. When using the pull subcommand, Docker fetches the image and saves it locally.

  # docker pull mysql

After pulling the image docker stores images locally and you can list them through below command .

  # docker images

Step 3: Preparing Persistent Storage for MySQL Container

4. Creating a directory on-base host Operating system. Setting up default ownership and group ownership uid and gid of MySQL user, which is default 27, because in running container processes, much be writable files to the directory.

  # mkdir /var/mysqldb
# chown -R 27:27 /var/dbfiles

Step 4 : Temporary Run MySQL container for Extra Variable

Before running or deploying this downloaded container image. I am going to run this container image for testing purposes, after starting the container with detaching mode option MySQL container stopped or existed because the Mysql container always needs some extra parameter. so after this we can see logs of that container image, the logs will show the MySQL container needs some extra parameter. I showed in the below screenshot. Below commands, I had used to run and check logs.

# docker run -d --name continer_name  MySQL
# docker ps -a
# docker logs continer_name
# docker rm continer_name

Step 5: Deploying a Container with Persistent Storage

This command mounts the host /var/mysqldb directory in the container /var/lib/mysql/data directory. The /var/lib/mysql/data is the directory where the MySQL database stores the data.

  Syntax : # docker run -d --name [container_name] -v host_folder:container_mysql_database_storefolder -e MYSQL_ROOT_PASSWORD=password image_name:tag

-e MYSQL_ROOT_PASSWORD : variable is having the MySQL server root password, so it should be a complex password.

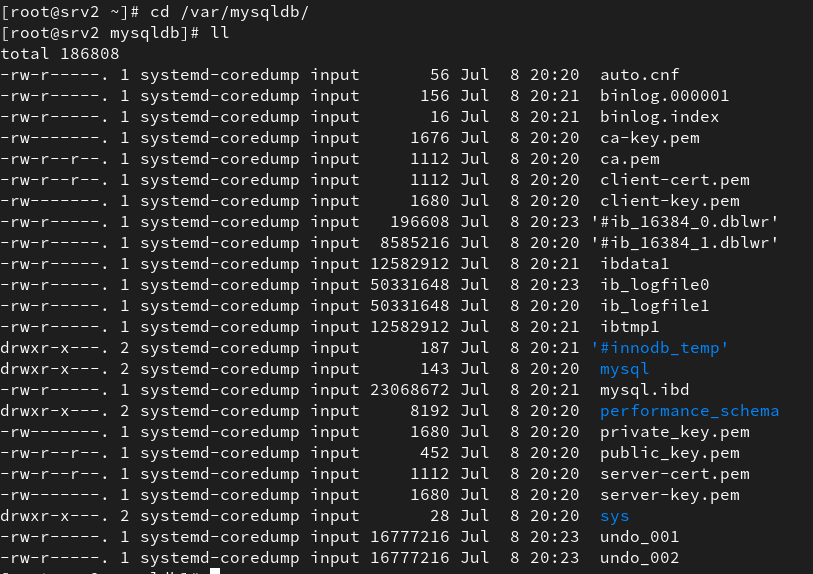

Verify that the /var/mysqldb directory contains mysql data of container.

Step 6: Access MySQL Container & MySQL server

Now access the shell of running mysql container through below command

 # docker exec -it [container_name] /bin/bash

Go into the container through the above command, and after that access the MySQL server through the below command

 # mysql -u root -p

Now you will be able to create users, databases, and assign privileges as on a regular MySQL server. Hope you enjoy container services.
